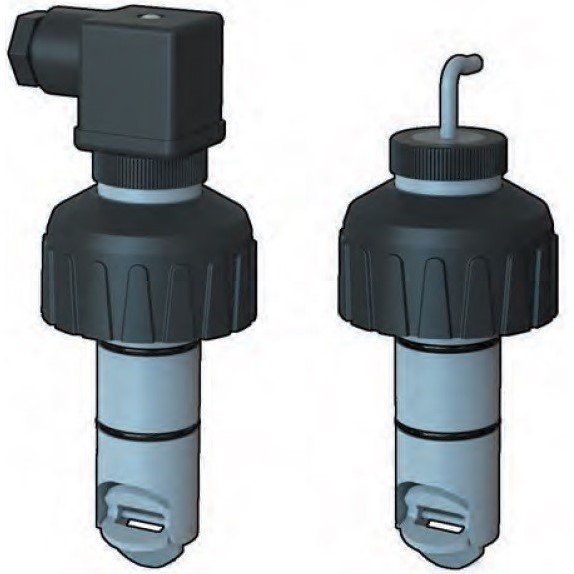

The simple and reliable paddlewheel flow sensor type F3.00 is designed for use with every kind of solid-free liquids. The sensor can measure flow from 0.15 m/s (0.5 ft/s) producing a frequency output signal highly repeatable. A rugged construction and a proven technology guarantee exceptional performances with little or no maintenance required. A dedicated electronic, with a push-pull output, is available for a safe connection to any kind of PLC/Instrument digital input. A specially designed family of fittings ensures an easy and quick installation into all pipe materials in sizes from DN15 to DN600 (0.5” to 24”).
Applications:
- Water treatment and regeneration
- Industrial wastewater treatment and recovery
- Textile finishing • Water distribution
- Processing and manufacturing industry
- Filtration systems
- Chemical production
- Liquid delivery systems
- Cooling water monitoring
- Heat Exchangers
- Swimming pools
- Pump protection
Main features:
- C-PVC, PVDF or Stainless Steel sensor body
- Two sensor lenghts to cover from DN15 up to DN600
- Easy insertion system
- IP65 or IP68 protection class
- Measurement range over 50:1
- High chemical resistance
- Version for battery powered system
- Push-Pull output for universal electrical connection
Technical data:
General
- Pipe Size Range: DN15 to DN600 (0.5” to 24”) Please refer to Installation Fittings section for more details
- Flow Rate Range: 0.15 to 8 m/s (0.5 to 25 ft./s)
- Linearity: ± 0.75 % of full scale
- Repeatability: ± 0.5 % of full scale
- Minimum Reynolds Number Required: 4500
- Enclosure: IP68 or IP65
- Wetted Materials:
- sensor Body: C-PVC, PVDF or 316L SS
- o-rings: EPDM or FPM
- rotor: ECTFE (Halar®)
- shaft: Ceramic (Al2 O3 )/316L SS (only for metal sensors)
- bearings: Ceramic (Al2 O3 )
Specific for F3.00.H
- Supply voltage: 5 to 24 VDC ± 10% regulated
- Supply current: < 30 mA @ 24 VDC
- Output signal:
- square wave
- frequency: 45 Hz per m/s nominal (13.7 Hz per ft/s nominal)
- type: transistor NPN open collector
- output current: 10 mA max
- Cable length: 8 m (26.4 ft) standard, 300 m (990 ft) maximum
Specific for F3.00.C
- Supply voltage: 3 to 5 VDC regulated or 3.6 Volt Lithium battery
- Supply current: < 10 µA max
- Output signal:
- square wave
- frequency: 45 Hz per m/s nominal (13.7 Hz per ft/s nominal)
- min. input impedance: 100 KΩ
- Cable length: 8 m (26.4 ft) standard, 16 m (52.8 ft) maximum
Specific for F3.00.P
- Supply voltage: 12 to 24 VDC ± 10% regulated
- Supply current: < 30 mA @ 24 VDC
- Output signal:
- square wave
- frequency: 45 Hz per m/s nominal (13.7 Hz per ft/s nominal)
- type: Push-Pull (for connection to NPN and PNP inputs)
- output current: 20 mA max
- Cable length: 8 m (26.4 ft) standard, 300 m (990 ft) maximum
Standards & Approvals
- Manufactured under ISO 9001
- Manufactured under ISO 14001
- CE • RoHS Compliant
- GOST R
