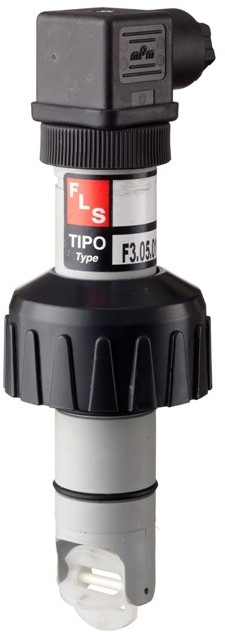

The simple insertion paddlewheel flow switch type F3.05 is designed to protect a pump from running dry or pumping against a closed valve. lt is equipped with a mechanical SPST contact activated when the flow velocity drops below the factory preset value of 0.15 m/s (0.5 ft/s). The F3.05 features a LED which shows the flow status locally. A specially designed family of fitting ensures an easy and quick installation into all pipe materials in sizes from DN15 to DN600 (0.5” to 24”).
Applications:
- Pump protection
- Filtration systems
- Cooling water systems
Main features:
- C-PVC, PVDF, Stainless Steel body
- Easy insertion system
- High chemical resistance
- No-Flow alarm relay output
- Highly visible Local Bicolour Status lndicator
- Maintenance free
- Very low pressure drop
Technical data:
General
- Pipe Size Range: DN15 to DN600 (0.5 to 24 in.) Please refer to Installation Fittings section for more details
- Supply voltage: 12 to 24 VDC ± 10% regulated • Supply current: < 50 mA
- Relay Output: mechanical SPDT contact, 1A @ 24 VDC, 0.1A @ 230 VAC
- Local Status Indicator:
- GREEN Led = Flow
- RED Led = No Flow
- No-Flow Rate Point: 0.15 m/s (0.5 ft./s)
- Enclosure: IP65
- Wetted Materials:
- sensor Body: C-PVC or PVDF or 316L SS
- o-rings: EPDM or FPM
- rotor: ECTFE (Halar®)
- shaft: Ceramic (Al2 O3 )
- bearings: Ceramic (Al2 O3 )
Standards & Approvals
- Manufactured under ISO 9001
- Manufactured under ISO 14001
- CE • RoHS Compliant
- GOST R
Maximum Operating Pressure / Temperature (25 years lifetime) F3.05 Sensor
- C-PVC body:
- 10 bar (145 psi) @ 25°C (77°F)
- 1,5 bar (22 psi) @ 80° C (176°F)
- PVDF body:
- 10 bar (145 psi) @ 25°C (77°F)
- 2,5 bar (36 psi) @ 100°C (212°F)
- SS body:
- 25 bar (363 psi) @ 120°C (248°F)
