30Nm
The actuator is especially suitable for the operation of ball valves and butterfl y valves with 90°-rotation angle.
Features
- robust, water-resistant body made of aluminium

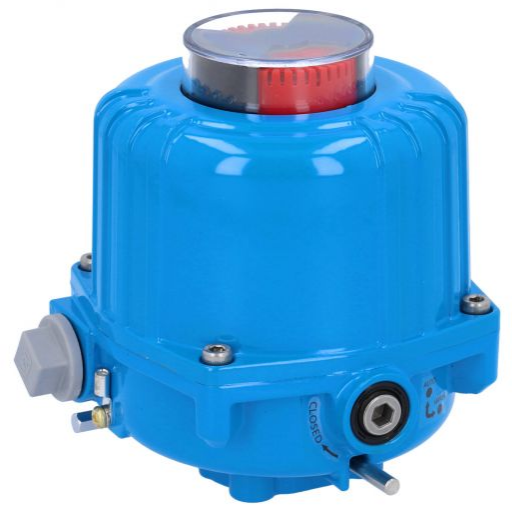

- optical position indicator, illuminated at endpositions
- compact body design
- manual override
- heating device against condensed water
- additional potential-free limit switches
Please notice:
At DC-motors the power consumption and the rotation speed is dependent to the required torque.
The required torque rises
MATERIALS
Carbon Steel, Aluminium Alloy, Bronze
Body polyester coated
INSTALLATION
Preferred with vertical upward optical position indicator. All other installations only after request.
TEMPERATURE OF THE ENVIRONMENT
-20°C ... +70°C

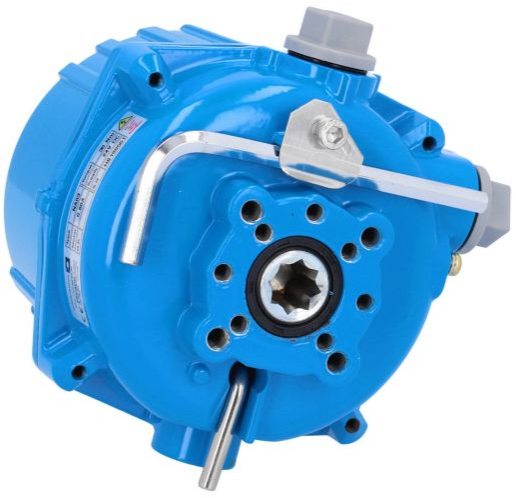

MOUNTING PAD
DIN-ISO 5211
STANDARD VOLTAGES
- 24V DC
- 230V 50/60Hz
- ±10% tolerance
- others on request
PROTECTION
IP 67
CABLE ENTRY
1 x M20x1,5
END STOPS
2 limit switches.
OPERATING ANGLE
90° ±5°
HEATER
3W
DUTY CYCLE
50%
The above information is intended for guidance only and the company reserves the right to change any data herein without prior notice!
