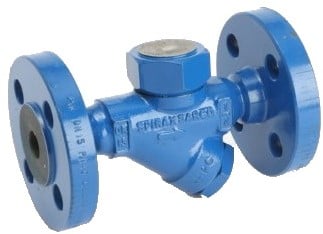

TD32F Flanged Thermodynamic Steam Trap
The TD32F is designed for installation in a horizontal pipe with the cover facing upwards. If the condensate trap discharges into a closed system, a check valve must be provided to prevent backflow. If the condensate trap vents to the atmosphere, it is advisable to install a silencer. Provide a suitable valve before and after the condensate trap to ensure safe maintenance and replacement.
Maintainable thermodynamic condensate trap from Spirax Sarco with flanges and built-in filter, suitable for pipeline drainage at medium pressures.
Diameters and Connections:
DN15 / DN15LC / DN20 / DN20LC / DN25 / DN25LC
Flanges:
DIN 2501 PN40. On request: ASME (ANSI) B16.5 class 150 and 300
Available Types:
TD32F standard
TD32FLC low capacity (suitable for pipeline drainage)
TD32FA & TD32FALC with venting disc (rapid air discharge at startup)
Standards:
These products fully comply with the European Pressure Equipment Directive 97/23/EC.
Certificates:
These products are available at an additional cost with a material certificate according to EN 10204 3.1. Certificates are only included if explicitly requested when ordering.
Options:
Isotub (only for DN15 and DN20) - To shield against external influences such as low outside temperatures, rain, wind, etc.
Pressure and Temperature Limits:
See datasheet
Design Conditions PN40:
- PMA - Maximum allowed pressure 40 bar eff.
- TMA - Maximum allowed temperature 400C
- Minimum allowable temperature 0C
- PMO - Maximum working pressure 32 bar eff.
- TMO - Maximum working temperature
- TD32F / TD32FLC 400C
- TD32FA / TD32FALC 255C
- Minimum working temperature 0C
- Minimum working pressure 0.25 bar eff.
- Maximum cold water pressure test 60 bar eff.
- Maximum back pressure 80% of working pressure
Materials:
- Body: Stainless Steel ASTM A743 CA 40
- Cover: Stainless Steel AISI 416
- Disc: Stainless Steel BS 1449 420 S45
- Sieve Cap: Stainless Steel AISI 416
- Sieve Cap Seal: Stainless Steel BS 1449 304 S16
- Filter Sieve: Stainless Steel ASTM A240 316L
- Insulation Cap (ISOTUB): Aluminum (only DN15 and DN20)
- Flanges: Steel DIN17243 C22.8 Ws 1.046
The TD32FA / TD32FALC is equipped with a 100 mesh filter sieve. The other versions have a 0.8mm filter sieve.
Thermodynamic condensate trap type TD32FLC DN15 with flanges PN40, suitable for pipeline drainage (low capacity) and equipped with Y-filter.
