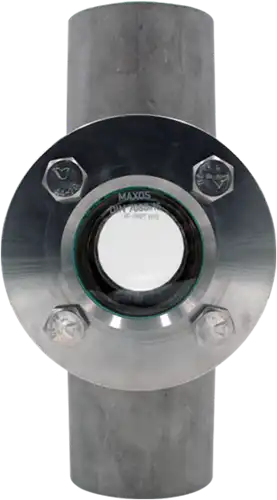

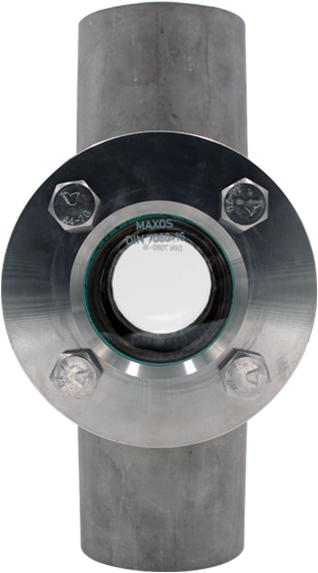

Sight Flow Indicators (straight line) PN16, PN25 and PN40
with pipe - thread connection BSP (G) or NPT
Application:
The flow indicators are used for optical control of fluids and gases, for horizontal and vertical pipelines. Also available with internal spinner or flap
Materials
Body GG 25 GS-C 25 1.4408
Covers GG 25 GS-C 25 1.4408
Screws 4.6 / 5.6 gal. A4-70
Glass Borosilicate glass DIN 7080 ( 280°C ) Soda lime glass DIN 8902 ( 150°C )
Gaskets Graphite, (or other materials)
Operating conditions:
Working pressure: max. 16 / 25 / 40 bar
Working temperature: max. 150°C or 280°C
Certificate: (Option ) Acc. to EN 10204 - 2.2 or Acc. to EN 10204 - 3.1
Ordering example:
Sight Flow Indicators Bauform 881
Body 1.4408
Borosilicate glass DIN 7080-16bar
G 3/4“
Installation:
Optional Take care of flow direction
Options:
- Spinner
- Flap
- Sight glass light - fittings
