SY / SYKIT Gauge and Kit for Gauge

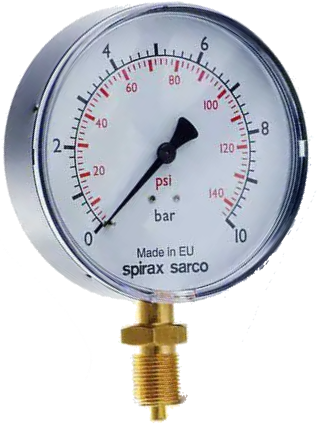

Liquid-free Gauge for gas, air, or non-corrosive liquids in an industrial design. With a scale diameter of 100 mm with black markings in bars.
According to EN 837-1
- Housing in stainless steel 304 (1.4301) and equipped with safety glass
- Connection in stainless steel 316L (1.4404)
- Robust design due to its mechanical damping
- Bottom connection 1/2 BSP male
- IP66
Available Standard Types:
SY230 Accuracy (EN 837-1) Class 1.0
Materials: Housing stainless steel 304 (1.4301)
Bourdon stainless steel 316L (1.4404)
Connection stainless steel 316L (1.4404)
Glass Safety glass
IP IP66
On request:
Gauge in steel with bourdon and connection in brass.
SY102
Accuracy (EN 837-1) Class 1.6
Materials:
Housing Black lacquered steel
Bourdon Brass
Connection Brass
Glass Acrylic
Measurement ranges (NBN 363): -1/1.5, -1/3, -1/5, -1/9, -1/15 bar eff. For other ranges, contact Ebora
Pressure and temperature limits:
see datasheet
Accessories for Gauges:- Gauge valve
- SYK A Steel needle valve (1.0460) Top swivel, bottom BSP MF PN400 -10 to + 120C
- SYK A1 Steel needle valve (1.0460), with test lens ?40 x 5 mm Top swivel, bottom BSP MF PN400 -10 to + 120C
- SYK I Same as SYK A but stainless steel (1.4571) MF PN400 -10 to + 200C
- SYK L1 Brass plug valve MF PN25, -10 to +50C
- SYK L2 Brass plug valve with test lens 60x25x10 mm FF PN25 -10 to +50C
- SYK L3 Brass plug valve FF PN25 -10 to +50C
Siphon- SYF A5 Helical siphon seamless steel pipe (St35.8) Top swivel, bottom BSP MF PN63, 400C
- SYF I 3 Same as SYF A5 but stainless steel (1.4571) MF PN63, 400C
- SYF A4 U-siphon seamless steel pipe (St35.8) Top swivel, bottom BSP MF PN63, 400C
- SYF I 4 Same as SYF A4 but stainless steel (1.4571) MF PN63, 400C

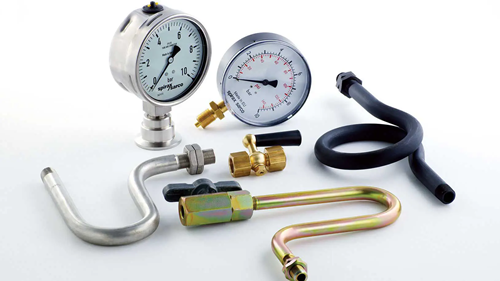

Kit for Gauge (SYKIT)
By default, the gaugue can be supplied with a kit for the gauge consisting of needle valve SYK A, siphon SYF A5, nipple with swivel, and 3x gasket (copper).
Gasket SYPAK DIN 16258, Copper , M20 x 1.5
DIN 16258, Stainless steel (1.4571) , M20 x 1.5
Cooling Element SY-CE Stainless steel cooling element (1.4404) BSP MF With SY230 400C With SY102 152C 4 bar eff.
Installation
When the gauge is used for steam or other hot gases, the gauge must be protected from heat by means of a U-siphon, ring siphon filled with a water lock, or a cooling element with a valve. Mount thegauge vertically in a well-visible location.
