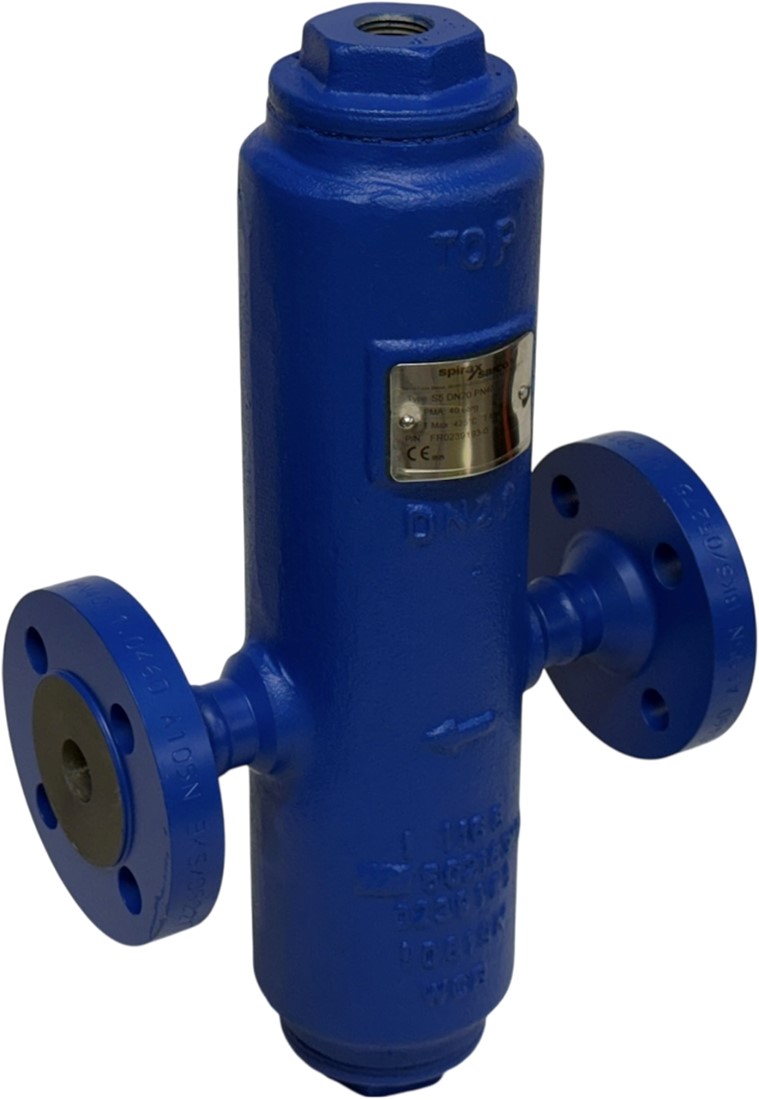

S5 Carbon Steel
The S5 is a static water separator used to separate the liquid phase from steam, compressed air, or other gases.
Options:
The water separators can be supplied with an insulation jacket to enhance their performance. (see TI-P138-01)
Standards:
These products fully comply with the European Directive on Pressure Equipment (PED) and bear the CE marking if required.
Certificates:
Available with a certificate according to EN 10204 3.1. Certificates are only provided if explicitly mentioned when ordering.
Diameters and Connections:
, , 1, 1 , 1 , and 2.
With internal thread BSP or NPT, butt weld, and socket weld.
DN15, 20, 25, 32, 40, and 50.
Flanges EN 1092 PN40 with BSP connections for venting and draining.
Flanges BS 1560 (ASME) Class 150 or 300 with NPT connections for venting and draining.
Flanges JIS / KS 10K & 20K with BSP connections for venting and draining.
Installation:
In a horizontal pipeline with the liquid discharge at the bottom and the vent at the top. Proper liquid drainage is ensured by connecting the appropriate condensate trap (not included) to the outlet at the bottom of the water separator. In steam installations where a lot of air can be present, the air will accumulate in the upper part of the separator. It is recommended to connect the appropriate air vent to the outlet at the top of the water separator. If no air vent is installed, the opening must be closed with a steel plug class 3000 lb.
