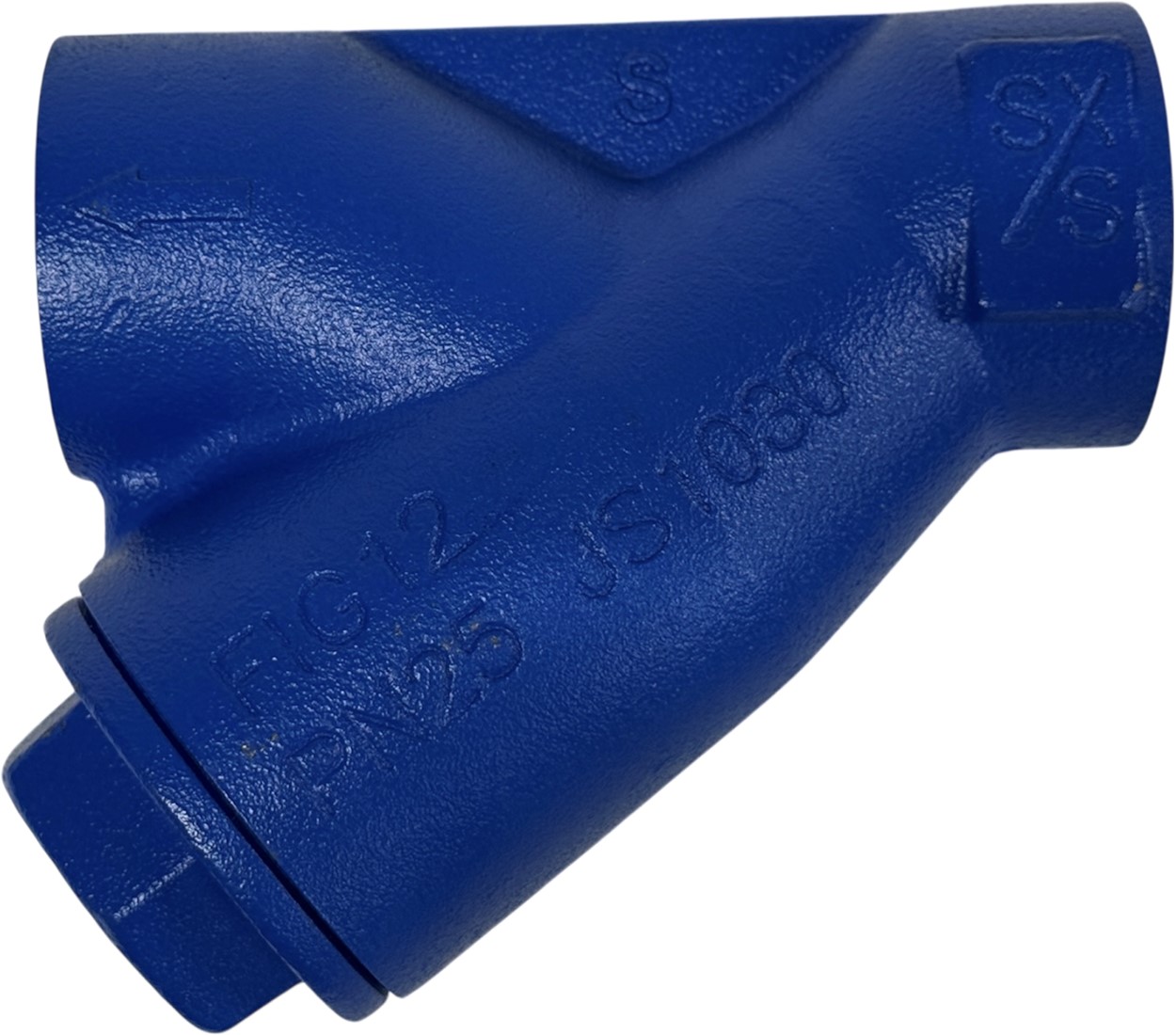

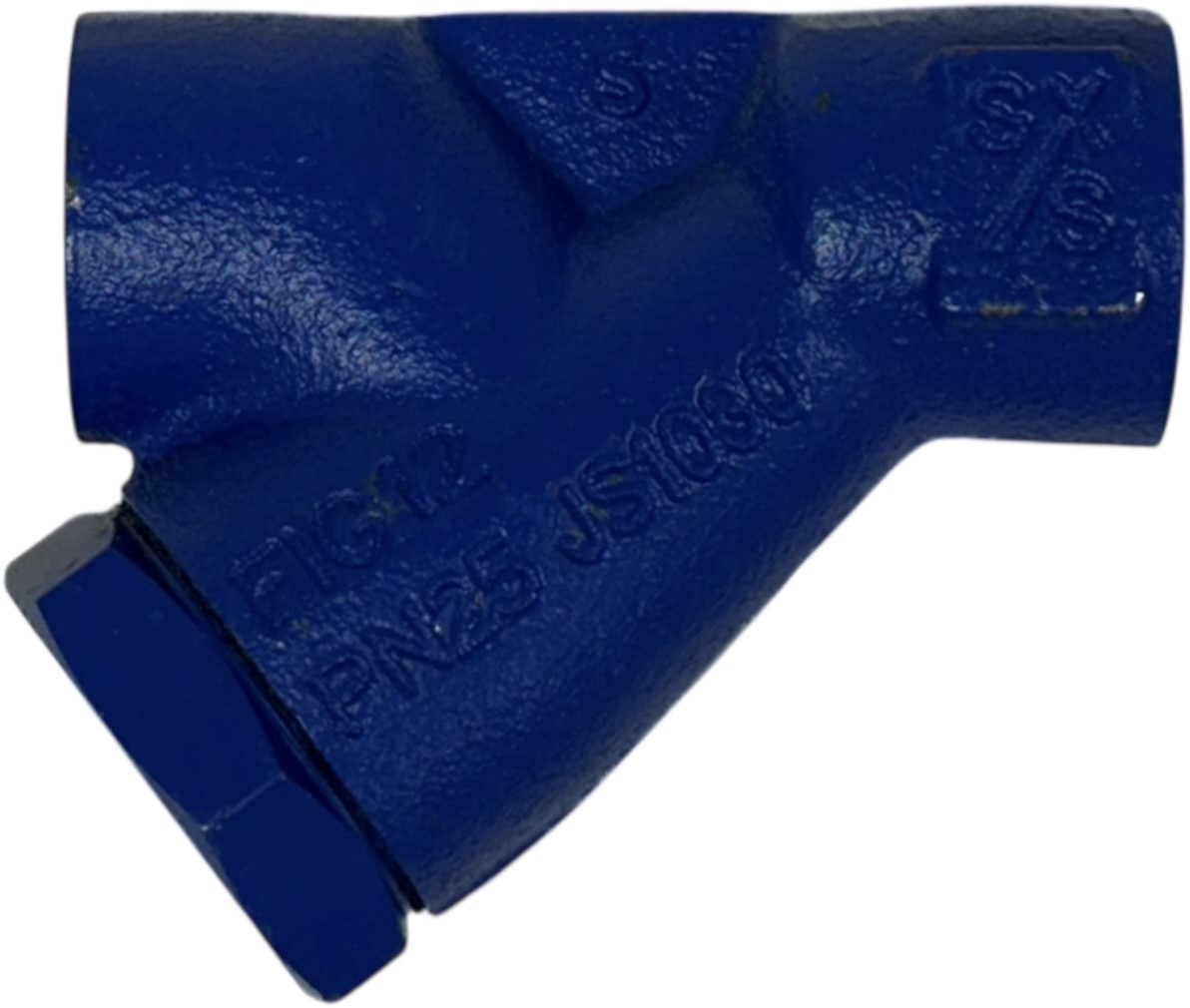

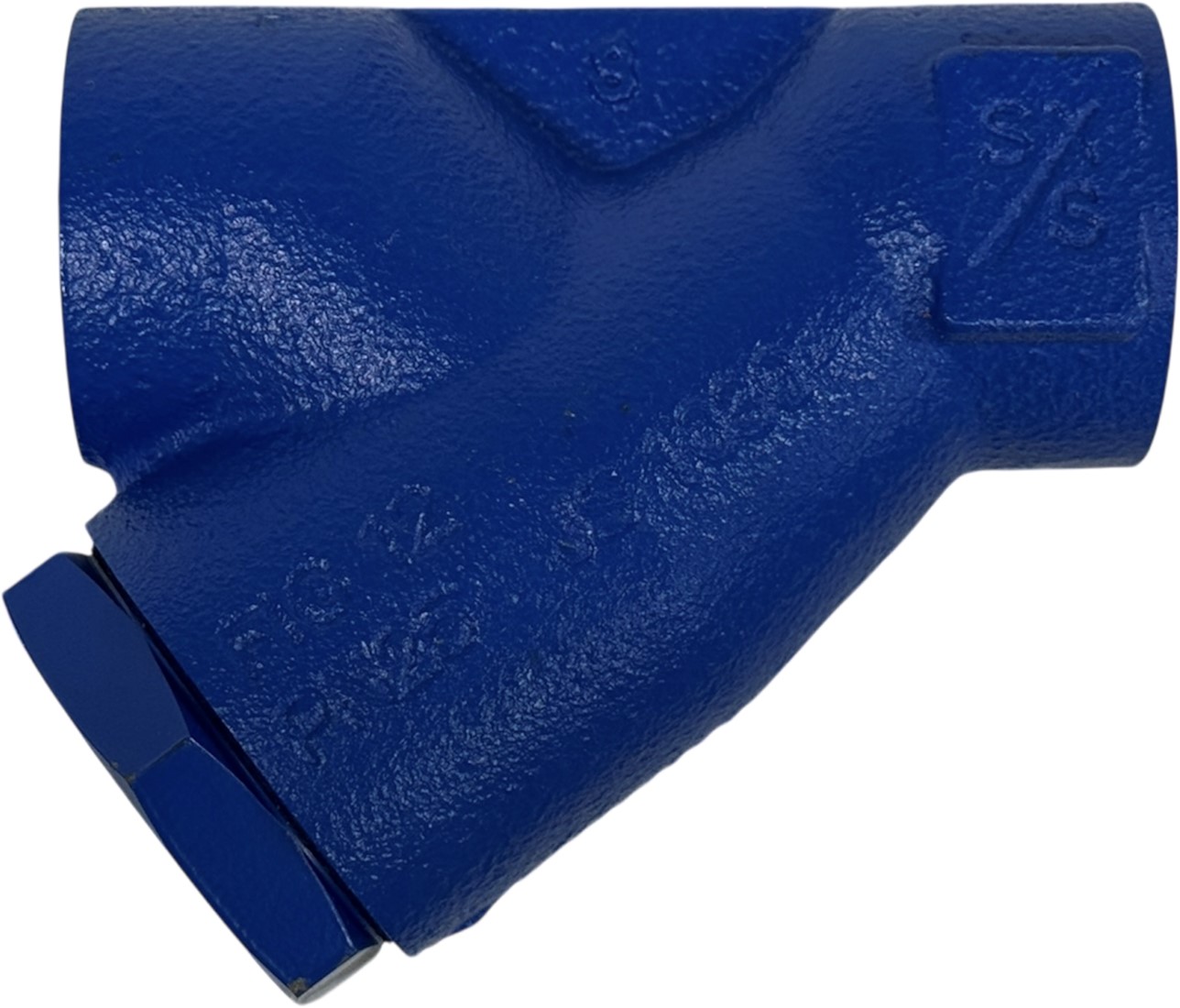

Fig 12 SG Iron Strainer
Nodular cast iron Y-strainer with threaded connection and stainless steel sieve with perforation of 0.8mm. Optionally available with Monel sieve and other perforations. The sieve cap can, upon special request, be equipped with a tapped hole for draining or flushing.
Standards:
The product fully complies with the European Pressure Equipment Directive 97/23/EC (PED).
Certificates:
Upon request, the product is available with a Type Test Report. Please specify clearly when ordering.
Diameters and Connections:DN , , 1, 1 , 1 , 2, 2 & 3 with BSP or NPT internal thread.
Options:
Filter Screens:
Stainless Steel Perforation 1.6mm, 3mm
Mesh 40, 100, 200
Monel: Perforation 0.8mm, 3mm
Mesh 100
Connection opening for blow-off or drainage valve:
see datasheet
Pressure and temperature limits:
see datasheet
Installation:
In horizontal or vertically descending pipelines, with the flow direction in the direction of the arrow on the housing. In a horizontal steam or gas pipeline, install the filter with the axis of the sieve in the horizontal plane (to prevent water accumulation). In a liquid installation pipeline, install the sieve cap at the bottom. Maintenance: The sieve can be replaced with the filter mounted in the pipeline.
